Industrial RS485 / RS422 Modbus 3xHD with 15W DC-DC conversion

Isolated DC-DC conversion plus 3x RS485 ports provide the capability of interfacing with sensors and instruments using RS232/422/485 powered by industrial DC power sources. These capes are designed to industrial grade I/O standards assuring reliable operation and protection in extreme operating environments.

These capes have been tested for compliance with strict EU emission standards.

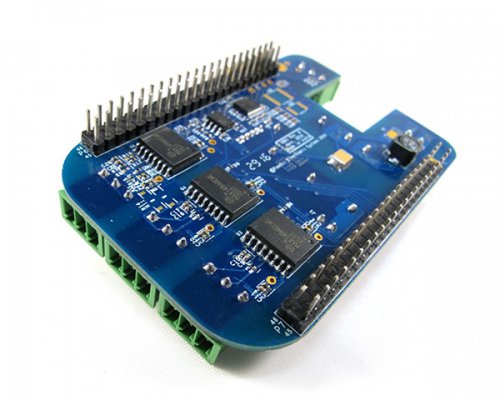

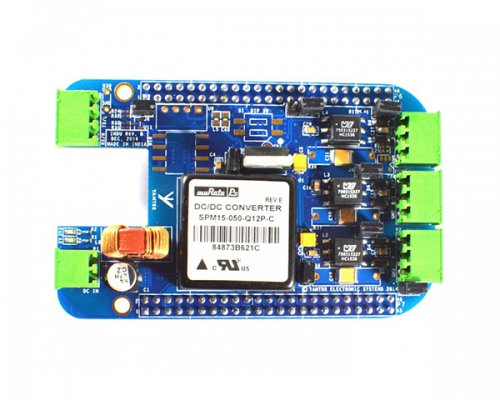

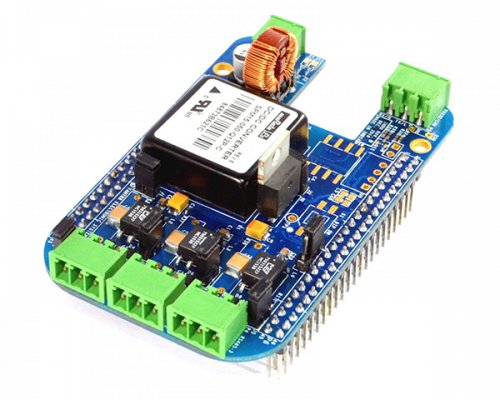

Note: Product photographs are representative but may not be exact as the final shipped product.

INDU-RS3HD-DC15W model provides following interfaces -

3x RS485/RS422:

• Pluggable 3.5mm 3-pin Terminal Header for each port
• 3x Half-Duplex RS485 ports
• Upto 256 devices supported on each port
• Upto 500 kbps operation
• 10KV Surge / 4KV Peak / 2.75KV RMS galvanic isolation
• 30KV (HBM) ESD protection
• Uses standard UART drivers in Linux kernel (linux support provided)

1x RS232:

• Pluggable 3.5mm 3-pin Terminal Header
• +/- 25V tolerant I/O

DC-DC Conversion:

• 36V-9V Wide-input range, 5V output (upto 3A, 15W) DC-DC power conversion
• Pluggable 3.5mm 2-pin Terminal Header for DC input source
• 1.5KV RMS isolation
• Provides power to BeagleBone CPU, Yantrr VIBE/VIBE2 systems, other capes installed on BeagleBone header also.

Misc.:

• Dedicated EEPROM for CAPE ID

Compatibility:

• Fully compatible with BeagleBone CPU systems
• Fully compatible with Yantrr VIBE/VIBE2 IoT platforms with builtin 3G/LTE modems

Included in the package:

• 4x 3.5mm 3-pin Terminal Plug, Screw Type
• 1x 2.5mm 2-pin Terminal Plug, Screw Type
