VIBEQ-4G (LTE,CAT4,America-Verizon) w/ GPS
VIBEQ-4G (LTE,CAT4,America-Verizon) w/ GPS
From: $260.00
Evaluation unit pricing. Contact sales@yantrr.com for volume discount.
Accessories included in the EKIT option package: 5V/1A DC Adaptor, 2x ANT-GSM-QUAD (Quad Band GSM Antenna), 2x u.FL to SMA cable, 1x GPS Antenna

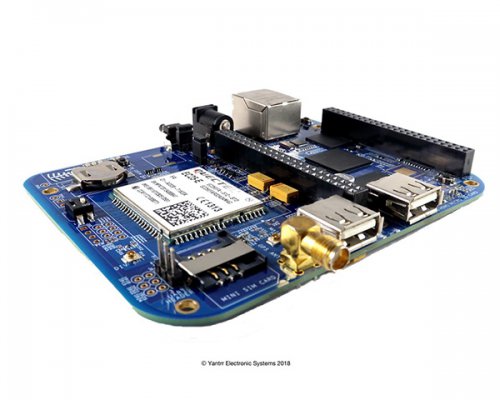

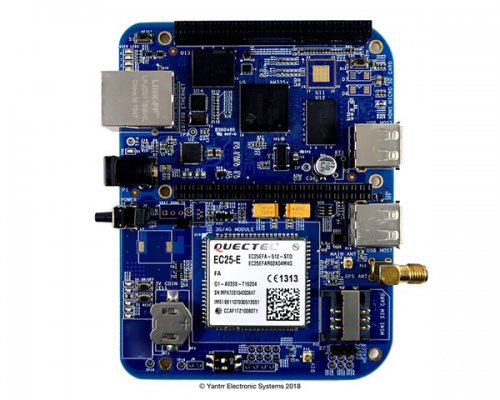

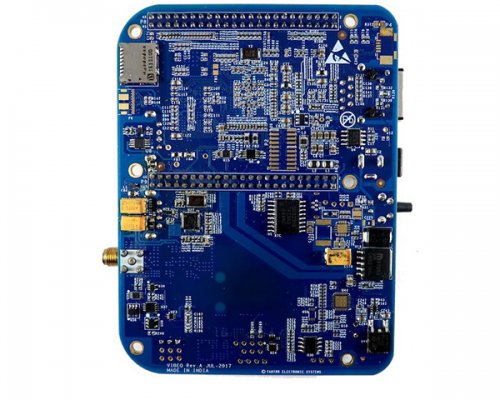

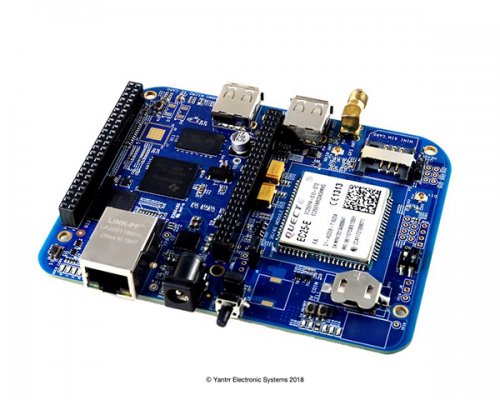

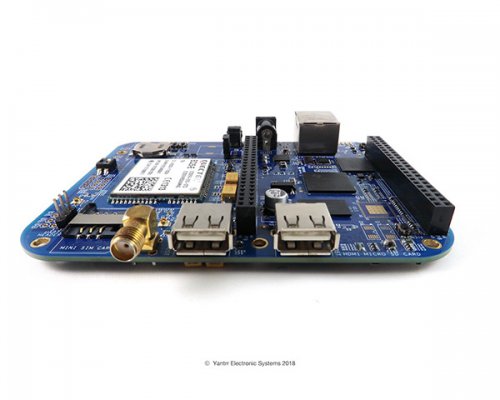

VIBEQ is an IoT hardware platform which provides a unique combination of industrial sensor interfaces Ethernet, SPI, I2C, RS232, CAN, GPIO, PWM, ADC), worldwide 3G/HSPA+ connectivity and a low power ARM processor for both industrial machine-to-machine (M2M) and home IoT applications. In an approximately 2x credit card size board, VIBE integrates wireless WAN connectivity with a powerful CPU system based on TI's popular AM335x Sitara ARM Cortex-A8 processors (300MHz to 1GHz options) complemented by 512MB (standard) DDR3 memory and abundant 4GB eMMC FLASH memory.
VIBEQ platform is redesigned to improve and extend the original BeagleBone platform while remaining fully compatible in both hardware and software aspects. This means you can connect any of the 10s of BeagbleBone sensor capes directly to VIBEQ to kickstart your next IoT application in minutes. VIBEQ ships with its own Debian compatible Linux OS specifically modified for IoT applications. You can also use standard Debian Wheezy (or Ubuntu) Linux or even android. We also provide separate Kernal patches and firmware to activate these specific features.
VIBEQ-4GEC25-V comes with 4G/LTE, CAT4 modem for America (Verizon Network), so you only need a SIM card to start collecting data from the field. VIBEQ can be operated fully on battery power and also support sleep mode for low power operations. It can be remotely woken up using the Modem (by sending a secure SMS). VIBEQ comes with RTC (with separate battery backup) for precise time-stamping of sensor data.
VIBEQ series also features an integrated multi-constellation positioning system.
VIBEQ specific details
- Redesigned Ethernet PHY power up reset circuits to ensure reliable trouble free operation in every power cycle
- Watch dog timer to ensure fail-safe operation of CPU's power management circuit.
- USB client debug port : Convenient access to console UART0 through USB host connection to any Windows/Linux PC
- USB Host port : 2x USB 2.0 HS, Type A connector. Reconfigured USB port extended to powered hub to eliminate USB device power down issues
- HDMI : Available
- Battery Operation : Lithium-Ion battery charging and automatic backup switchover circuit. Use any available 3.7V Li-Ion rechargeable battery (product doesn’t ship with a Li-Po battery)
- RTC : Standard high precision battery backed RTC (Real Time Clock). 3V coin cell (CR1216) needed for backup supply (provided with the board).
VIBEQ-4GEC25-V (America – Verizon) details
- Connectivity: GSM/GPRS/EDGE/WCDMA/HSPA+/4G/LTE
- Bands: FDD LTE: B4/B13
- Navigation: Integrated Multi-constellation GNSS receiver
- Regions: America (Verizon Network)
- Modular Approvals: FCC/GCF/Verizon
- Antennas: Main and Diversity cellular model u.FL connector, GNSS SMA (F) connector
SIM Card | 1.8V/3V 6 pin Mini USIM |
LEDs | 10 LEDs (Board Power, 4x User LEDs, Modem Power, Netlight/signal, Modem Status, GPS Power, GPS Fix) |
Control Interfaces | Push button switches for Reset, Boot, Power, Modem Reset, Modem On/Off |
Antenna | u.FL connector for Main and Diversity cellular antennae, SMA (F) for GNSS |
Cape ID | 256Kb EEPROM on I2C2 with 2pos Dip switch |
Certifications/Approvals | FCC, CE |
Board ID | 4KB EEPROM on I2C0 |
Battery Source | 3.7V Li-Ion Battery Input with battery charging, thermistor and reverse voltage protection (Not Installed) |
Processor | TI Sitara Arm Cortex-A8 AM3352 600MHz, 64KB SRAM shared Data 32KB Cache, Programmable 32KB Cache, On-Chip 256 KB L2 Cache |
Graphics Engine | N/A |
On board Flash | 4GB, 8 bit Embedded MMC |
Real Time Clock | Automatic calendar compensated up to year 2100, battery backed |
PMIC | TPS65217C PMIC and two additional LDO |
Debug Support | USB accessible UART0 console |
On board Storage | 4GB eMMC based filesystem |
Power Source | 5V, 4A DC Jack (Battery option also available) |
HS USB2.0 USB0 | Expansion to 2 port USB hub, Type A socket, 500mA LS/FS/HS |
HS USB2.0 USB1 | Dedicated access to modem |
Ethernet | 10/100Mbps, RJ45 |
SD/MMC Connector | MicroSD, 3.3V |
I/O Interfaces | 2x SPI, 2x I2C, 5x UART, 7xAIN(1.8V max), McASP0, GPIO(69 max), MMC1, MMC2, LCD 24 bit, GPMC |
Video Interface | Micro HDMI |
Compatibility | Compatible with other Industrial capes such as CANBus, RS232, RS485 and most of the LCD capes |
Receiver | 16 channels GPS and 14 channel GLONASS |
Acquisition Sensitivity | -147dBm (Cold start), -159dBm (Reaquisition), -161dBm (Hot start) |
Time To First Fix | 22s (Cold Start), 3s (Warm start), 2s (Hot start) |
Accuracy | <1.5m CEP-50 |
Position, Velocity, Time | 2D/3D position, velocity and time 183 geodetic datum supported (default) (WGS84) |
Position Update Rate | 1 Hz |
Message Formats | NMEA0183 Ver. 3.01 ASCII, as well as proprietary message |
NMEA Output Messages | $GPGGA, $GPGSA, $GPRMC, $GPGLL, $GPGSV, $GPVTG,$GPZDA |
Host Communication Interface | /dev/ttyUSB1@ baud rate 115200 |
Power | 50mA, 3.3V |
Operating Temperature range | -40 to +85 C |
Device Type | 4G/LTE CAT4 Module |
Chip | LTE |
Network | GSM/GPRS/EDGE/WCDMA/HSPA+ |
Frequency Band | FDD LTE: B4/B13 |
Data Rate (DL / UL) | LTE FDD: Max 150Mbps (DL) Max 50Mbps (UL) |
Voltage | 4V (3.3V -4.25V) |
Audio | Analog Differential ended two way voice |
Connection Interface | PPP (Point to Point Protocol) |
Software Features | AT command set, USSD, SMS, GPS |
Operating Temperature range | Normal : -20 to +70 C, Restricted : -30 to +80 C |
Host Communication Interface | USB 2.0 HS at USB1 host port |
OS Distribution Support | Debian Stretch, Angstrom Linux, Ubuntu, Android – as Kernel module or Pre compiled image |
Driver Support | USB drivers for 4G module, Embedded GNSS |
Middleware | GPS (nmead), 4G (wvdial/ppp,qmi) |
