VAYU-2G (Global)
VAYU-2G (Global)
$48.00
Contact sales@yantrr.com before placing order.
Antennas are not included in the price and must be purchased separately as accessories. Recommended Quad Band GSM Antenna (1x)

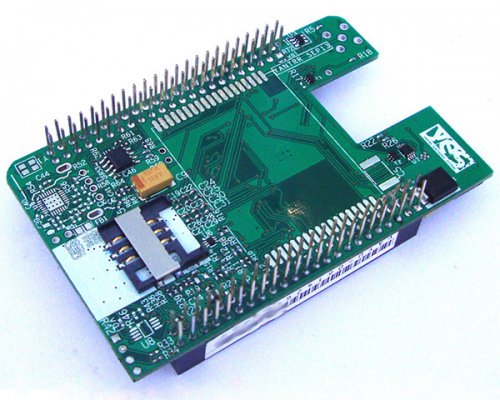

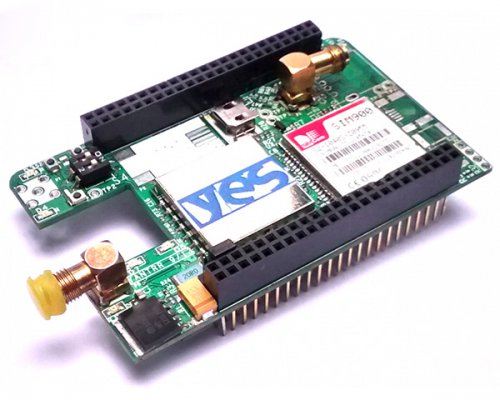

VAYU-2GQN-A is a 2G/GPRS cape ideally suited for low-data M2M application needs.
- Quad band (GSM 850, EGSM 900, DCS 1800, PCS 1900) connectivity.
- Works with major GSM carriers all over the world
- Approved by NCC, Anatel, Rogers, Orange, AT&T, Vodafone
- Maximum GPRS data rate of 85.6kbps DL/42.8kbps UL
- Mini USIM card
We provide full software support for VAYU-2GQN-A which include pre-compiled images of different operating systems( Debian Wheezy, Ubuntu, Angstrom, Android) , Kernel modules with drivers, Device tree overlays and sample wvdial files. Check our product support page.
Some Applications of VAYU-2GQN-A cape can be :
- Access your BeagleBone SBC from anywhere on the world.
- Home automation and home Surveillance from your mobile phone.
- Send local sensor network data (Zigbee, LE Bluetooth, other capes based) onto cloud using secure wireless gateway.
- Make your industrial automation solution based on CAN wireless and easily controlled by mobile phones or web browsers
Note:
Accessories like GSM antenna and SMA cables to be used with the cape are also available with us. They are sold separately.
General
SIM Card | 1.8V/3V 6 pin Mini USIM |
LEDs | Power LED for Modem, Netlight/signal LED, Status LED |
Control Interfaces | Power and Hardware reset over GPIOs and push button switches |
Antenna | SMA Connector for GSM antenna |
Cape ID | Dedicated onboard EEPROM with 2pole Dip switch |
Certifications/Approvals | FCC, CE, GCF, CCC, RoHS |
Wireless Modem
Device Type | 2G module |
Chip | N/A |
Network | GSM/GPRS |
Frequency Band | GSM 850/EGSM 900/DCS 1800/PCS 1900 |
Data Rate (DL / UL) | 85.6kbps DL/42.8kbps UL |
Voltage | 4V (3.2V -4.8V) |
Audio | Analog Differential ended two way voice |
Connection Interface | Point to point protocol –PPP |
Software Features | AT command set, USSD, SMS, TCP/IP stack |
Operating Temperature range | Normal : -30 to +80 C, Restricted : -40 to +85 C |
Software
OS Distribution Support | Debian Wheezy, Angstrom Linux, Ubuntu, Android – as Kernel module or Pre compiled image with cape configured |
Driver Support | Linux device tree overlay files for GPRS serial port |
Middleware | GPRS (wvdial/ppp) |
Support
- Please read our AN100 Beaglebone M2M Cape Application note for further details.
- http://www.yantrr.com/wiki/Main_Page#VAYU_M2M_Capes
